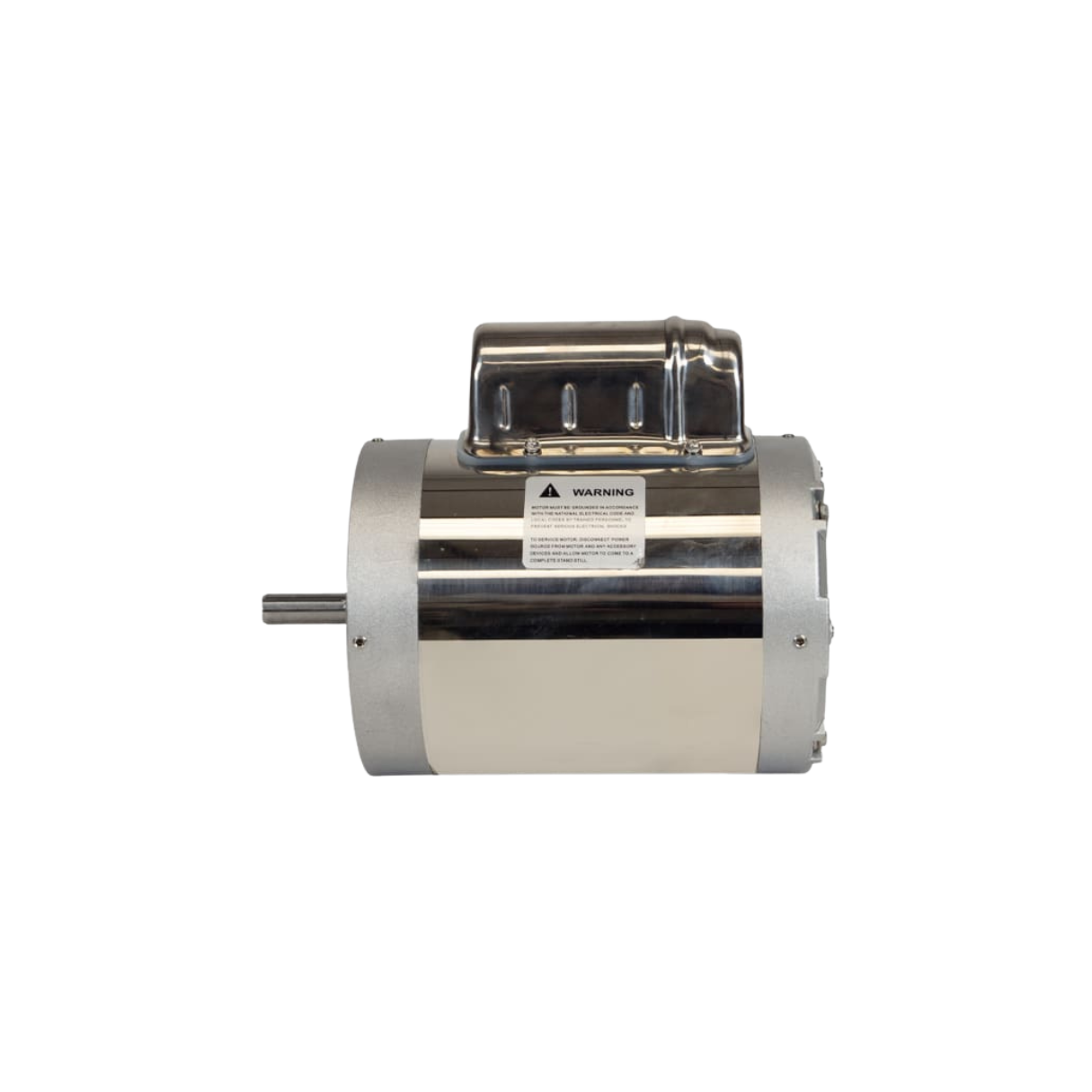

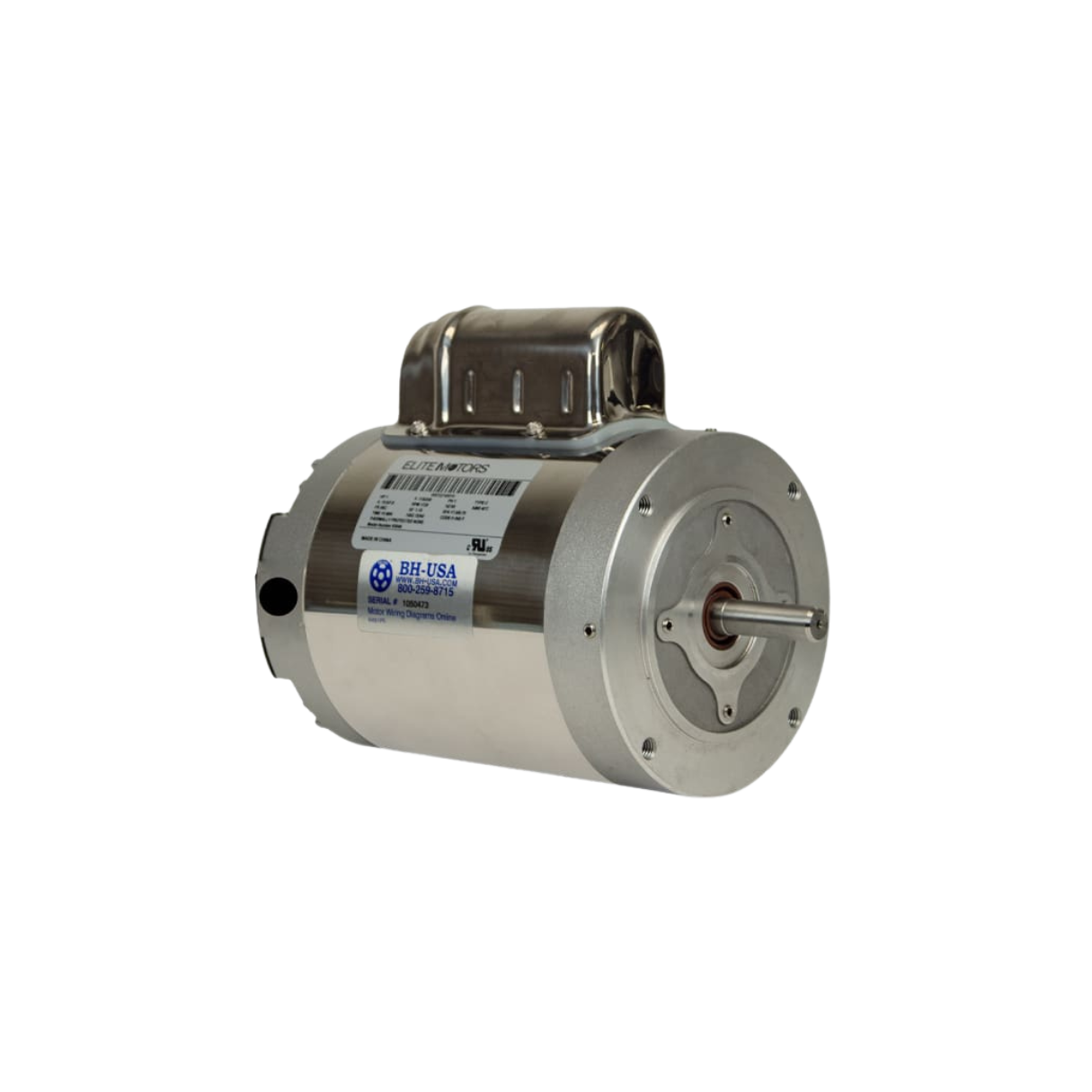

The Elite Stainless Electric Motor is a single-phase, dual-voltage boat lift motor designed for direct mounting onto gearboxes like the A-Drive and E-Drive, without a separate base, utilizing a C-Face or C56 flange mount. It features stainless steel housing, aluminum end plates, and a marine-grade gasket for water and dust protection. Easy to wire, it works with any drum switch or boat lift remote.
Compatible with a range of boat hoists, including models from BH-USA, Golden Lift, AMS, and Deco Lifts, this 1 HP motor runs at 115V or 230V, drawing 15.6 amps or 7.8 amps respectively. Operating at 1725 RPM and 60 Hz, it fits a 56c frame and has a service factor of 1.15. The C-Face mounting allows easy installation on hoists with standard flange mounts. It is UL-certified, with a TENV housing, class F insulation, and an IP rating of 54.
Size:
The Elite Stainless Electric Motor is a single-phase, dual-voltage boat lift motor designed for direct mounting onto gearboxes like the A-Drive and E-Drive, without a separate base, utilizing a C-Face or C56 flange mount. It features stainless steel housing, aluminum end plates, and a marine-grade gasket for water and dust protection. Easy to wire, it works with any drum switch or boat lift remote.
Compatible with a range of boat hoists, including models from BH-USA, Golden Lift, AMS, and Deco Lifts, this 1 HP motor runs at 115V or 230V, drawing 15.6 amps or 7.8 amps respectively. Operating at 1725 RPM and 60 Hz, it fits a 56c frame and has a service factor of 1.15. The C-Face mounting allows easy installation on hoists with standard flange mounts. It is UL-certified, with a TENV housing, class F insulation, and an IP rating of 54.
Product Overview
Stainless Steel Construction with Aluminum End Caps
Dual-Voltage 120 or 240 operation
UL and NEMA Recognized
Totally Enclosed Keeps Bugs Out
Designed for the Boat Lift Industry
Removable drain holes at 12:00, 3:00, 6:00 and 9:00
