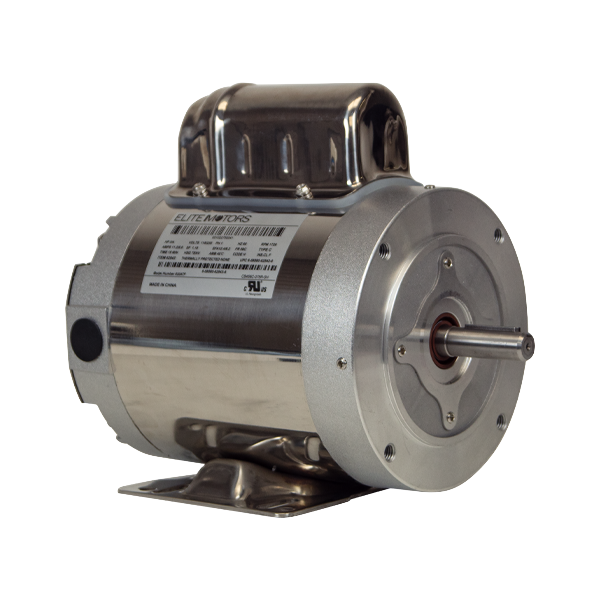

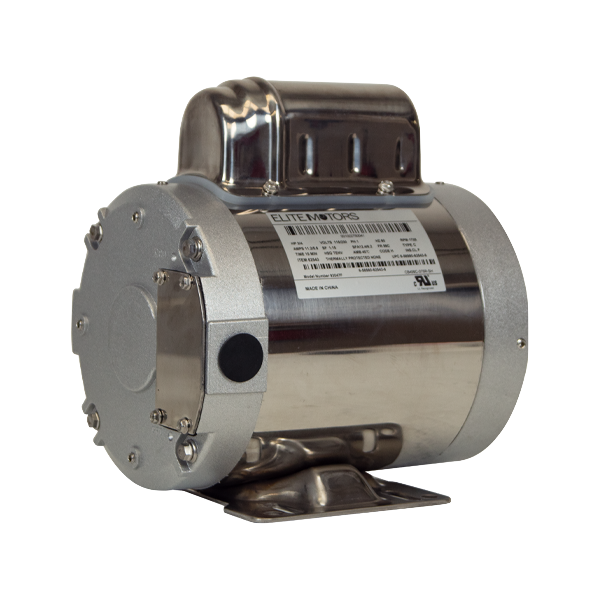

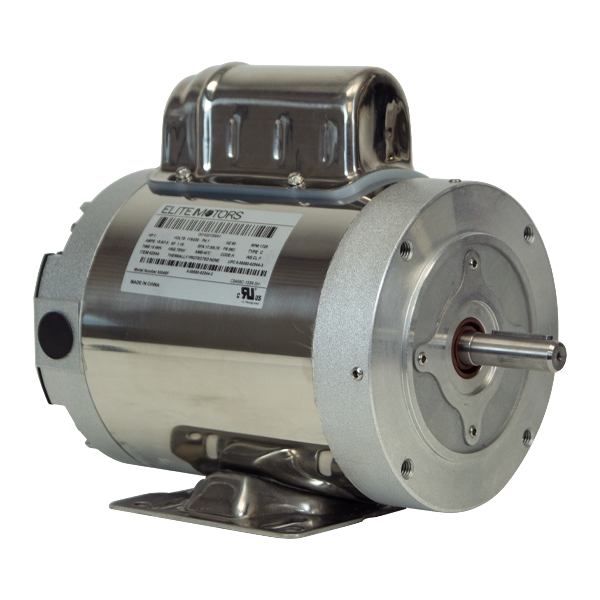

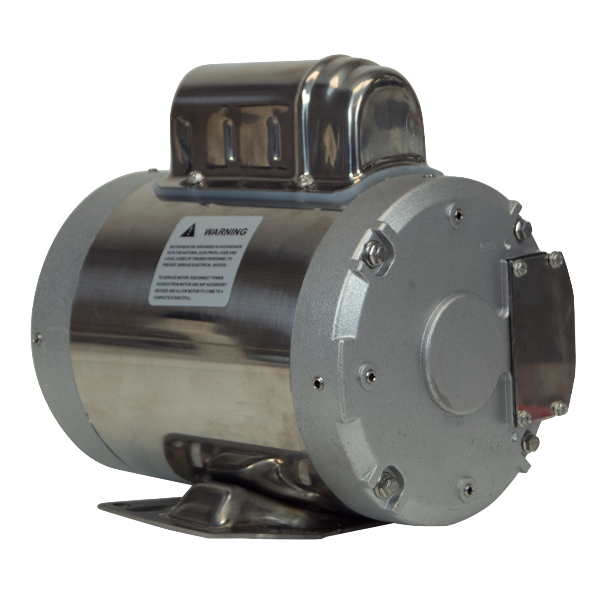

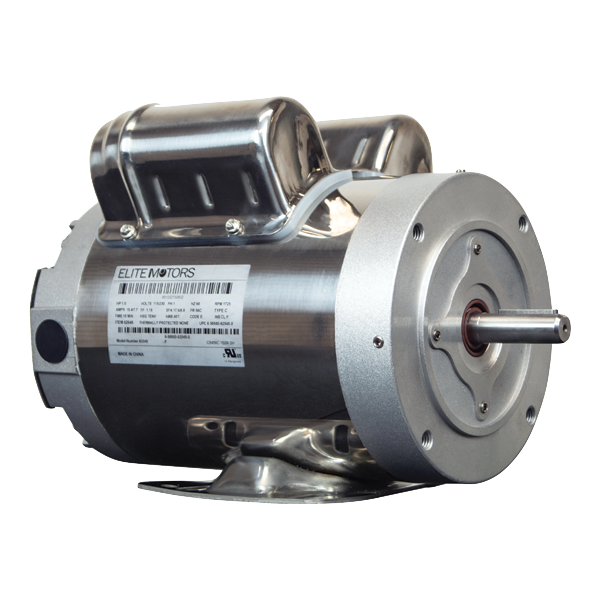

Elite 56 Frame TENV Stainless Steel Motor

from $450.00

The Elite 56 Frame TENV Stainless Steel Boat Lift Motor is designed for flat-plate boat hoists and is available in 3/4 HP, 1 HP and 1.5 HP options.

Each motor features a corrosion-resistant stainless steel housing, aluminum end plates and a welded base designed for standard flat-plate gear plates. The TENV (Totally Enclosed Non-Ventilated) design helps protect internal components from moisture, dirt, insects and debris.

These single-phase motors feature dual-voltage 115/230V operation, 1725 RPM speed and adjustable T-wires for easier wiring.

Select the appropriate horsepower for your boat lift before ordering.

Size:

The Elite 56 Frame TENV Stainless Steel Boat Lift Motor is designed for flat-plate boat hoists and is available in 3/4 HP, 1 HP and 1.5 HP options.

Each motor features a corrosion-resistant stainless steel housing, aluminum end plates and a welded base designed for standard flat-plate gear plates. The TENV (Totally Enclosed Non-Ventilated) design helps protect internal components from moisture, dirt, insects and debris.

These single-phase motors feature dual-voltage 115/230V operation, 1725 RPM speed and adjustable T-wires for easier wiring.

Select the appropriate horsepower for your boat lift before ordering.

QUALITY GUARANTEE

FAST SHIPPING

Genuine parts for long-lasting performance

Orders ship same or next business day

Trusted boat lift service throughout Tampa Bay

EXPERT SUPPORT

We’re here to help with any questions

TRUSTED SERVICE

Key Features

Designed for flat-plate boat lift hoists

NEMA 56-frame motor

Stainless steel housing for added corrosion resistance

Single-phase operation

Capacitor-start design

Dual-voltage operation

Fits BH-USA flat-plate hoists and gear plates

Colored T-wires for easier identification

Wiring guide and instructions included

Keystock included

Stainless Steel Construction

The Elite stainless motor features a stainless steel frame with corrosion-resistant aluminum end plates for added protection in marine environments.

A heavy marine-grade gasket on the stainless steel capacitor housing also helps keep water and dust away from internal components.

GEM Remotes manufactured after March 2007

Up to 300 feet

Up to 16

Yes

Yes

372 MHz

Up, Down, Stop

2 CR2032 Batteries

What Is a TENV Motor?

GEM Remotes/7240

TENV stands for Totally Enclosed Non-Ventilated.

The enclosed housing helps protect the motor's internal components from moisture, dirt, insects and debris without relying on outside ventilation openings.

This makes TENV motors well suited for boat lift and marine applications.

Motor Specifications

Select the horsepower that matches your boat lift and hoist requirements.

Details

¾ HP

1 HP

1.5 HP

Voltage

115V/230V

115V/230V

115V/230V

11.2A

115V

15.6A

15.4A

5.6A

230V

7.8A

7.7A

Frame

NEMA 56

NEMA 56

NEMA 56

Enclosure

TENV

TENV

TENV

IP Rating

IP55

IP55

IP55

Insulation

Class F

Class F

Class F

1725

RPM

1725

1725

Single

Phase

Single

Single

Service Factor

1.15

1.15

1.15

Shaft Diameter

5/8”

5/8”

5/8”

Shaft Length

2”

2”

2”

Max. Runtime

15 Min.

15 Min.

15 Min.

Max. Ambient Temp

40°C

40°C

40°C

Weight

20.55 lbs.

29.75 lbs.

35 lbs.

Important: Select motor horsepower based on your boat lift and hoist requirements. If you're unsure which motor is right for your lift, please contact us before ordering.
