Elite Boat Lift Drum Switch - Maintained Lock-On

$105.00
Sold Out

The Elite Maintained Boat Lift Drum Switch provides manual UP and DOWN control for compatible electric boat lift motors. Its maintained (lock-on) operation keeps the switch in the selected position until the handle is manually returned to OFF.

Designed for boat lift applications, the switch features a gasket-sealed housing to help protect its internal components from moisture and outdoor conditions. It's a practical replacement for existing maintained-style boat lift controls.

Important: This is a maintained/lock-on switch. It does not automatically return to the Off position when the handle is released.

Get notified by email when this product is back in stock.

The Elite Maintained Boat Lift Drum Switch provides manual UP and DOWN control for compatible electric boat lift motors. Its maintained (lock-on) operation keeps the switch in the selected position until the handle is manually returned to OFF.

Designed for boat lift applications, the switch features a gasket-sealed housing to help protect its internal components from moisture and outdoor conditions. It's a practical replacement for existing maintained-style boat lift controls.

Important: This is a maintained/lock-on switch. It does not automatically return to the Off position when the handle is released.

QUALITY GUARANTEE

FAST SHIPPING

Genuine parts for long-lasting performance

Orders ship same or next business day

Trusted boat lift service throughout Tampa Bay

EXPERT SUPPORT

We’re here to help with any questions

TRUSTED SERVICE

Key Features

Maintained operation for manual rising and lowering

Designed for compatible single-phase boat lift motors

Suitable for replacing an existing maintained drum switch

Gasket-sealed housing helps protect internal components

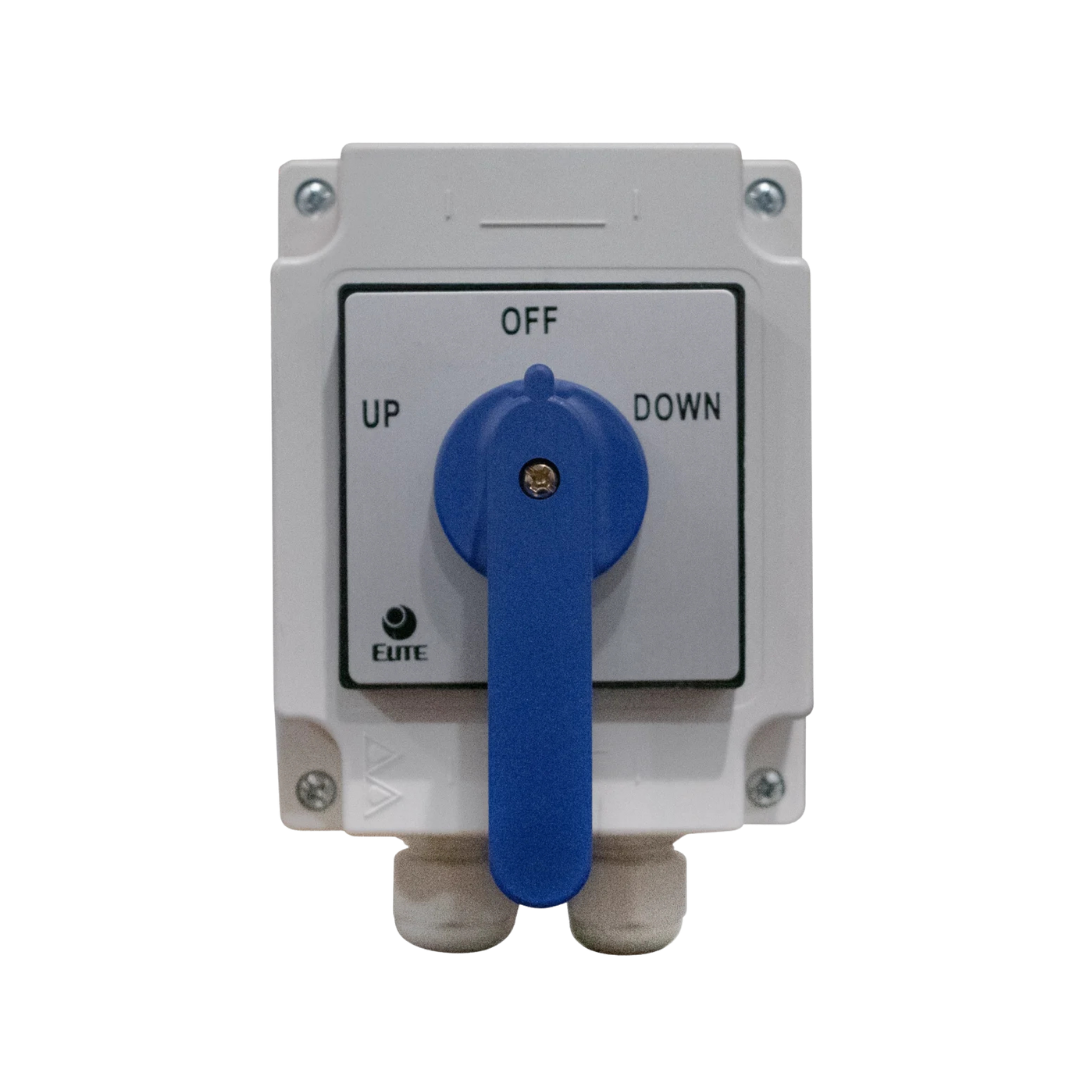

Clearly defined UP, OFF, and DOWN positions

Maintained vs. Momentary Drum Switch

Maintained (This Product)

  • Stays in UP or DOWN until manually switched OFF

  • Does not have guide arrows on the front plate

  • Requires the operator to manually stop the motor

Momentary

  • Returns to OFF when the handle is released

  • Has guide arrows on the front plate

  • Stops the motor when the handle is released

GEM Remotes manufactured after March 2007

GEM Remotes/7240

Up to 300 feet

Up to 16

Yes

Yes

372 MHz

Up, Down, Stop

2 CR2032 Batteries

Product Specifications

Switch Type:

Rotary Drum Switch

Maximum Current:

20 Amps

Maintained / Lock-On

Operation:

Operating Voltage:

120-240V AC

Maximum Motor Size:

1.5 HP

Electrical Switch Rating:

600 VAC

Housing Color:

Light Gray

Handle Color:

Blue

Housing Protection:

Gasket-Sealed

4.5” L x 3.5” W x 4.5” H

Housing Dimensions:

Handle Length:

3”

Weight:

1.25 lbs.
